12V Regulated Pixels (set of 100)
12V Regulated Pixels (set of 100)
Couldn't load pickup availability

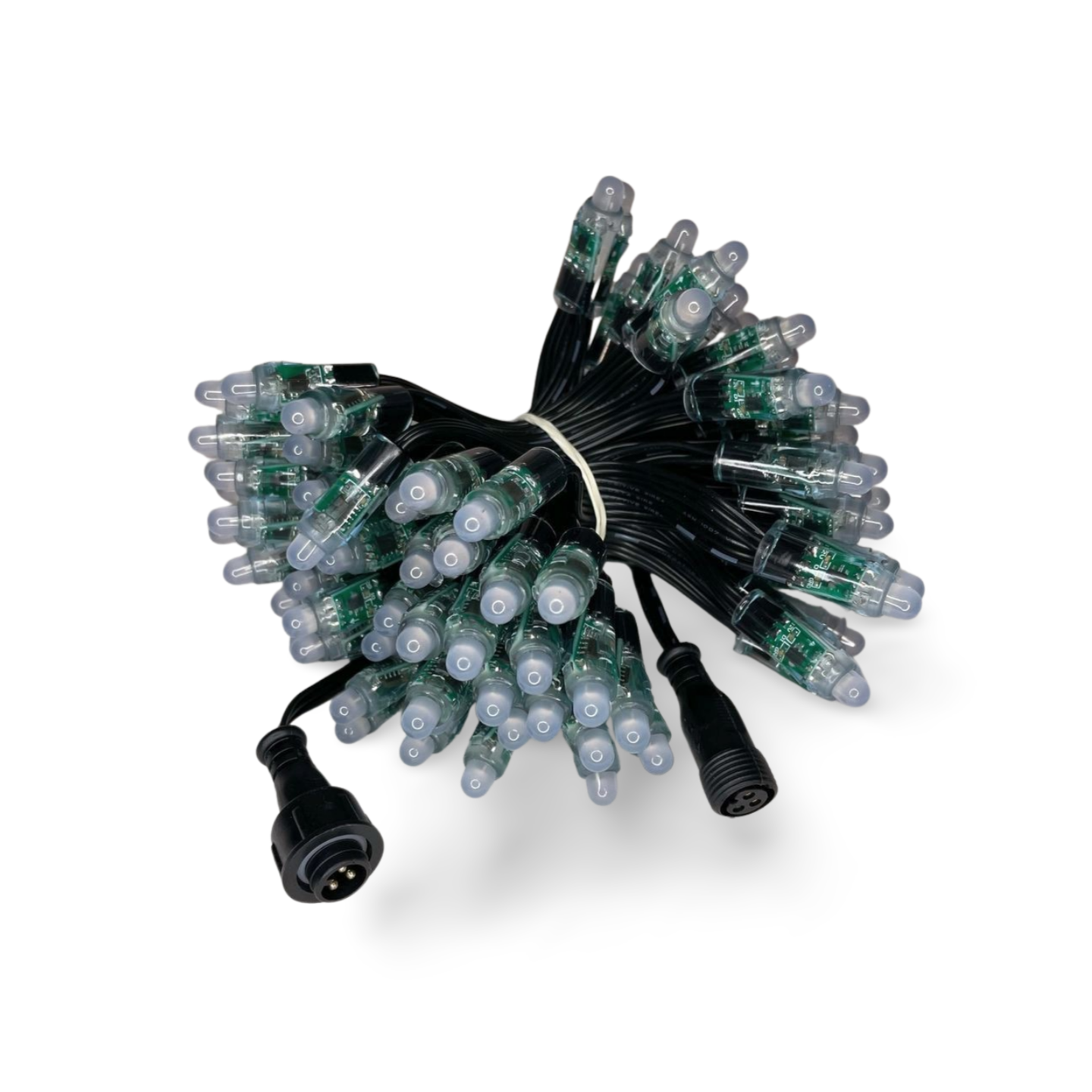

These 12V regulated WS2811 bullet LED pixel nodes feature 18 AWG wiring with reliable Ray W connectors, ensuring stable voltage and consistent color output. Designed for professional lighting projects, the set of 100 provides precise control and easy installation, ideal for complex pixel mapping and dynamic displays.
Specification:
|
Part No |
free-2811-12V-IP68-regulated-18AWG-100 |
|
Color |
full rgb color,24bit,256 gray scale |
|
LED Qty |
1pcs 8mm round hat 0.24w rgb led with 4pin common anode |
|
Input Volt |
DC12V |
|
Max current |
50MA |
|
Max Power |
0.6W |
|
Driver method |
Constant current circuit |
|
Dimension |
12mm diameter(open hole) |
|
Viewing angle |
100-120degree |
|
Protection Level |
IP68 |
|
Certification |
CE and RoHS |
|
Standard connection |
100pcs nodes per string |
|
Standard wire length |
100mm(4inches) wire spacing;all BLACK 18AWG wire input end: 0.2m long male connector with 18AWG black flat wire output end:0.2m long female connector with 18AWG black flat wire |
|
Housing |
transparent PVC |
|
Fixed way |
12mm diameter open hole; 12mm*14mm |
|
Lifespan |
35000 hours |
|
Warranty |
2years |
|
Operation temperature |
-40-50 |
|
Store temperature |
-50-60 |
