PixelProps
350w Power Supply (12V)
350w Power Supply (12V)
Regular price
$39.95 AUD
Regular price
Sale price
$39.95 AUD
Unit price
/
per
Couldn't load pickup availability

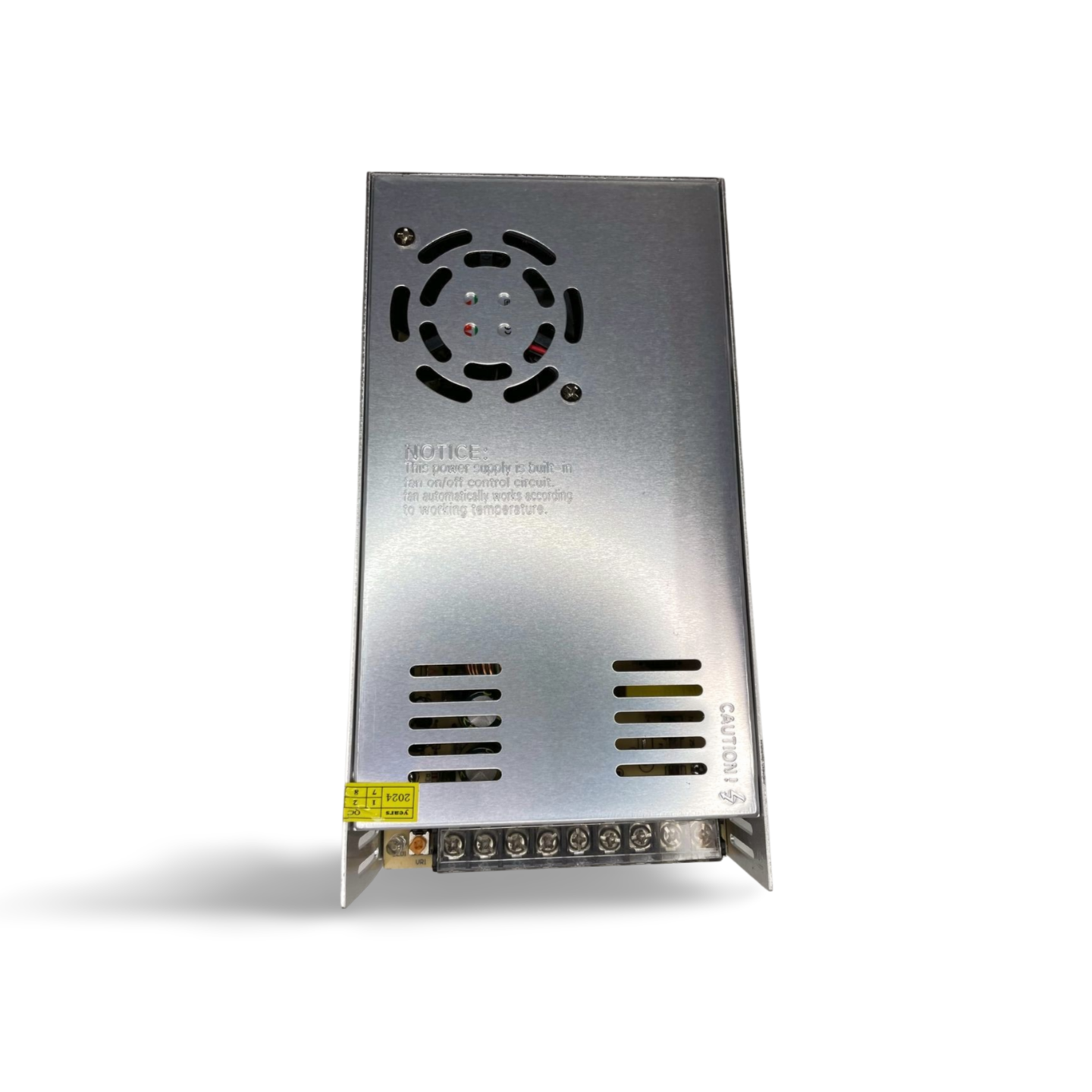

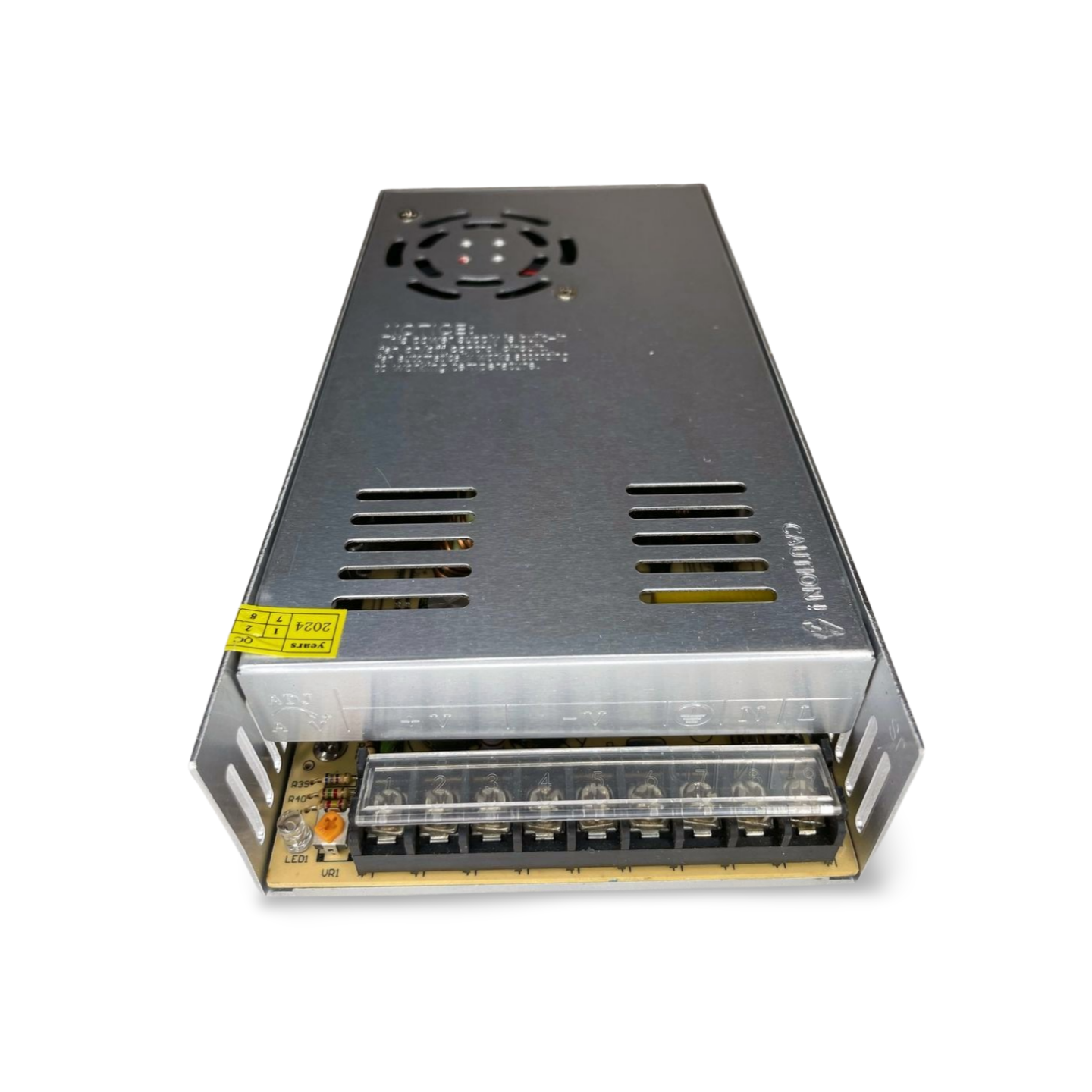

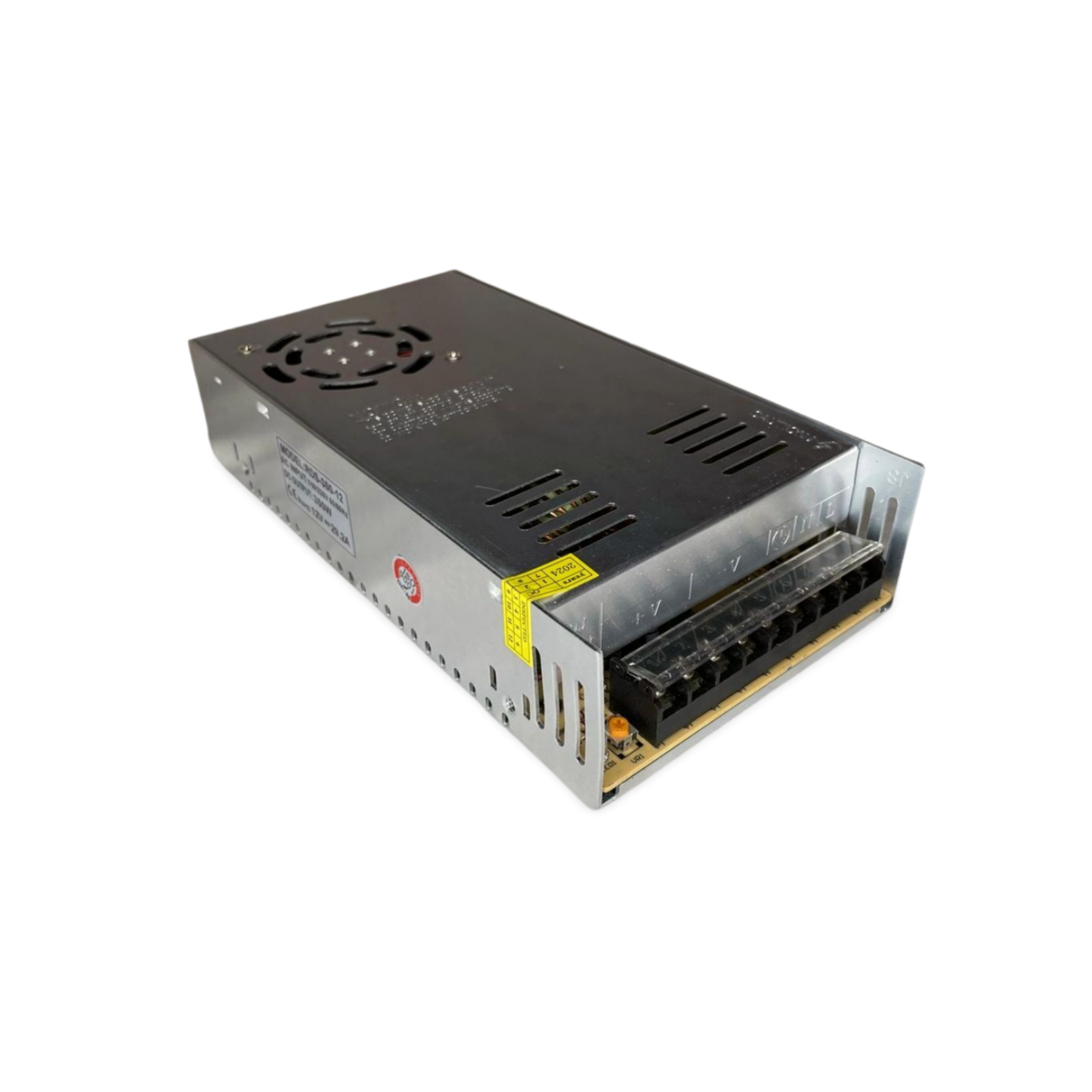

The HS-350-12 is a reliable 12V DC switching power supply with 29A output current capacity (350W total). Designed for professional LED lighting installations, it features adjustable voltage output (10-13.2V), universal AC input (85-264VAC), and built-in protection circuits. Ideal for powering pixel props and LED displays with consistent, stable power delivery.
Specifications:
- Model: HS-350-12
- DC Output Voltage: 12V
- Output Voltage Tolerance: ±1%
- Rated Output Current: 29A
- Output Current Range: 0-29A
- Total Power: 350W
- Efficiency: 80%
- Adjustable Voltage Range: 10-13.2V DC
- Wave and Noise: 150mVp-p
- Input Voltage Range: 85-132VAC / 180-264VAC (47-63Hz)
- Input Current: 6.5A @ 115V / 4A @ 230V
- Dimensions: 215mm × 115mm × 50mm
- Weight: 1.15kg
Protection Features:
- Overload Protection: 105%-135% hiccup mode, auto recovery
- Over Voltage Protection: 115%-135% cut off output, auto recovery
- Temperature Protection: Fan control: 65-70°C on, 55-60°C off; Shutdown: 80-85°C
Environmental Specifications:
- Working Temperature: -10°C to +60°C
- Working Humidity: 20% to 90% RH
- Storage Temperature: -20°C to +85°C
- Storage Humidity: 10% to 95% RH
