3W RGB Spotlight (12V)
3W RGB Spotlight (12V)
Regular price
$29.95 AUD
Regular price
Sale price
$29.95 AUD
Unit price
/
per
Couldn't load pickup availability

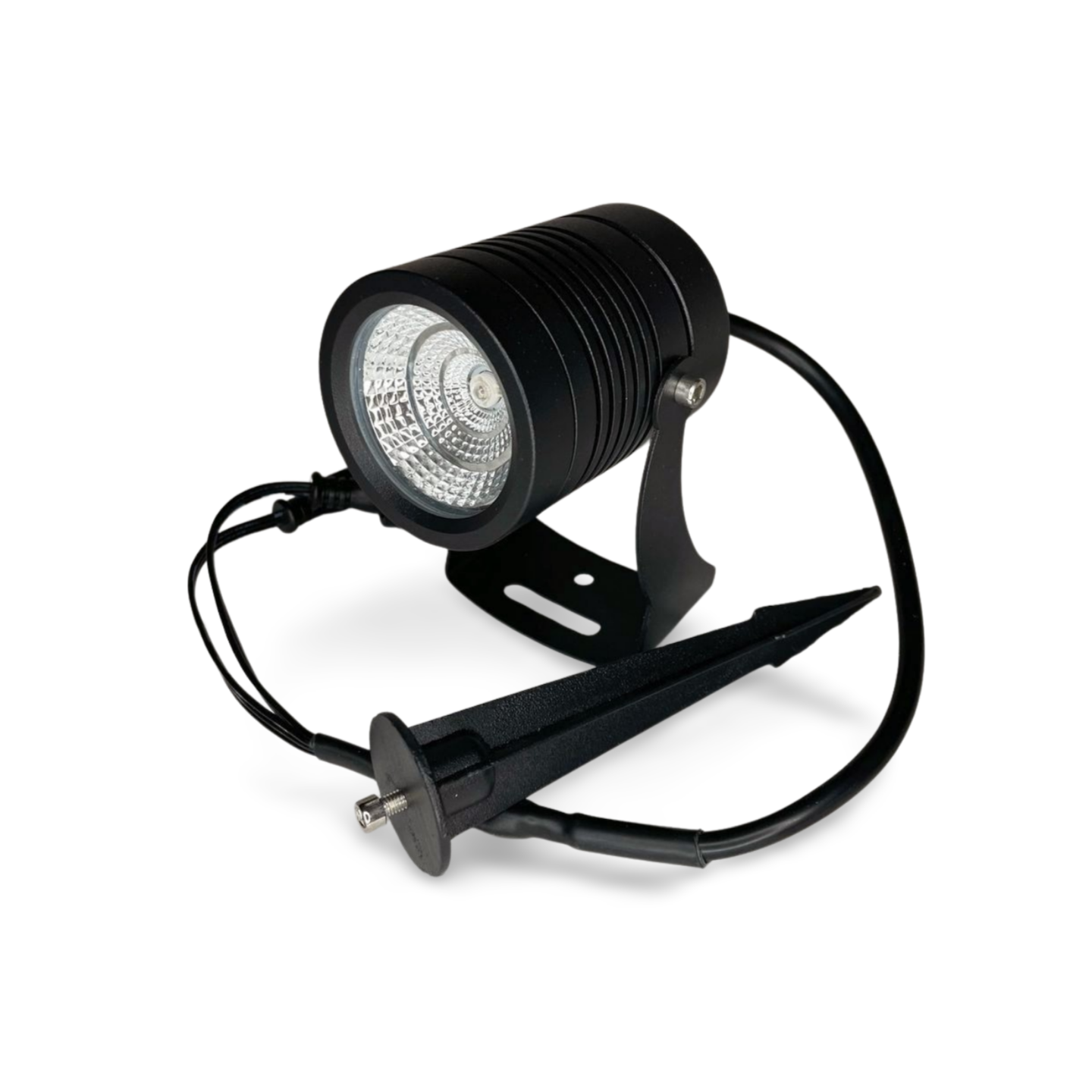

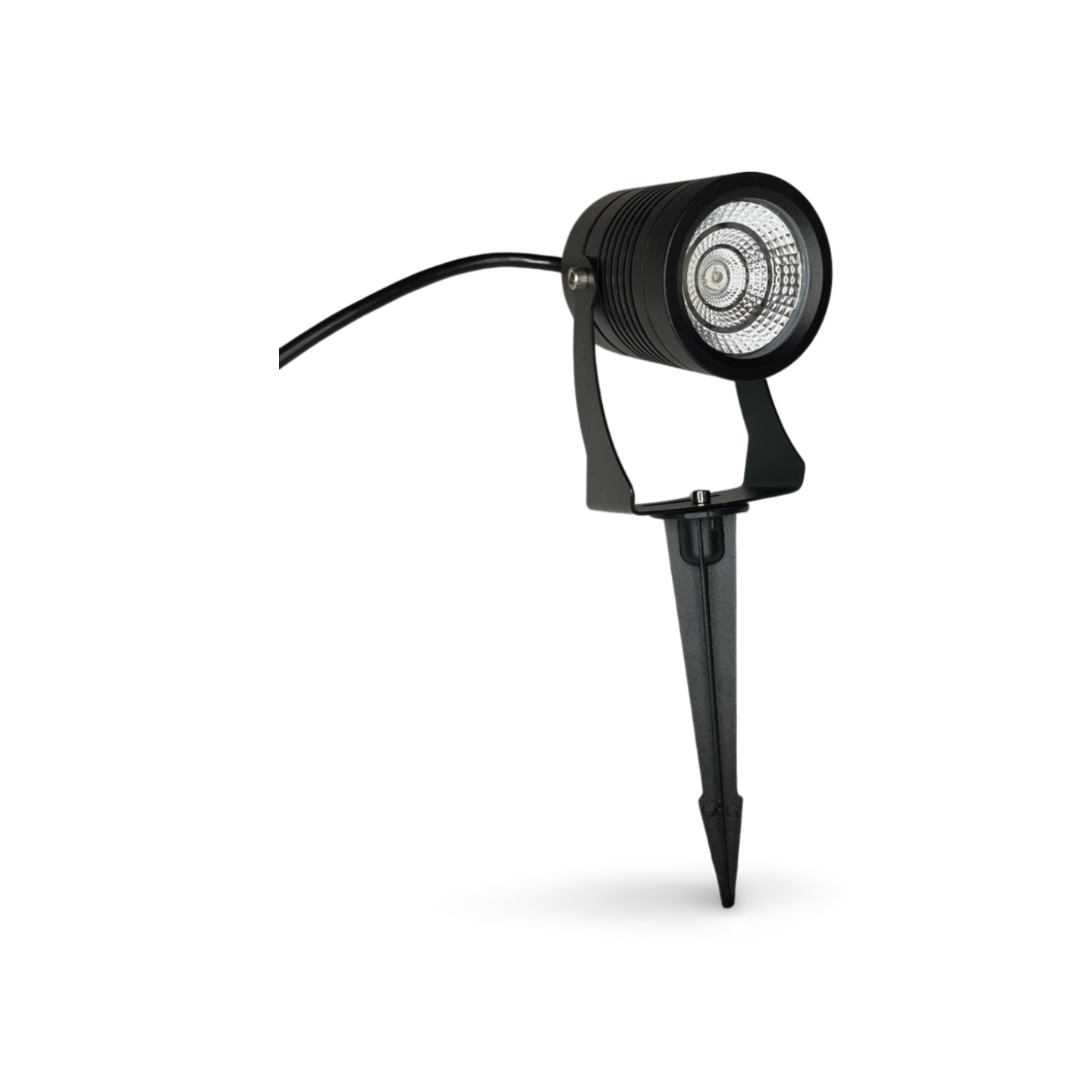

This 3W RGB spotlight operates on DC 12V and features the WS2811-RGB addressable LED technology for precise color control. Designed for landscape applications, it has a durable IP67-rated housing ensuring protection against dust and water. Its compact size (64mm x 85mm) and three-core wiring make installation straightforward, ideal for professional outdoor lighting projects requiring dynamic color effects and reliable performance.
Specifications:
- Case Material: Die-cast aluminum
- Input Voltage: DC 12V
- Beam Angle: 90º
- Color: Addressable RGB/RGBW full color
- Power Source: COB 3W high power RGB LED
- Control Method: WS2811 IC; 3CH TTL/SPI protocol for RGB
- Case Size: 64mm × 85mm
- Waterproof Rating: IP67
- Power Efficiency: 90%
Wire Color Code:
- Brown: 12V + (Positive)
- Yellow/Green: Data Signal
- Blue: Ground / Earth (Negative)
Connectors:
Input end:
Male connector (screw end with bare pin)
Output end:
Female connector (with hole)
