PixelProps

P5 Outdoor Panel 32X64

P5 Outdoor Panel 32X64

$39.95 AUD
$39.95 AUD
Sale Sold out
<div class="product-description">
<p>Professional P5 SMD 3-in-1 outdoor LED display panel featuring high-resolution pixel density and wide viewing angles. Built with durable SMD2727/SMD2525 LEDs and constant drive technology, this panel delivers bright, clear visuals for outdoor installations. Ideal for large-scale displays with excellent color reproduction and weather-resistant construction.</p>
</div>

<section class="product-specs">
<h2>Unit Module Specifications:</h2>
<ul class="specs-list">
<li>
<span class="spec-label">Model Number:</span>
<span class="spec-value">P5-8S</span>
</li>
<li>

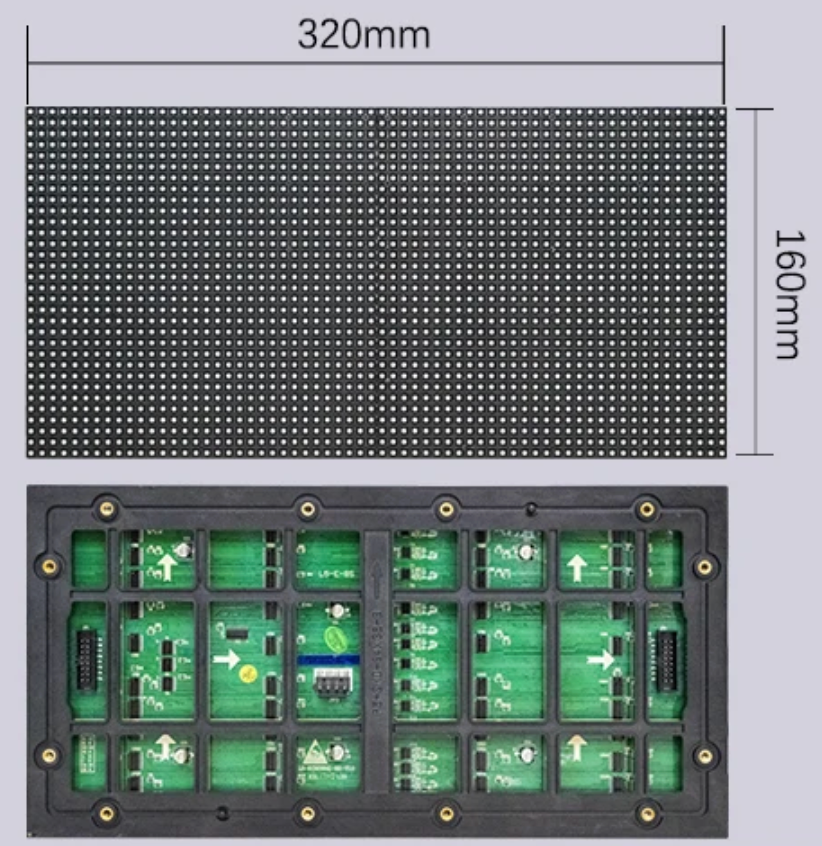

<span class="spec-label">Module Size:</span>
<span class="spec-value">320mm × 160mm</span>
</li>
<li>
<span class="spec-label">Pixel Pitch:</span>
<span class="spec-value">5mm</span>
</li>
<li>
<span class="spec-label">Pixel Density:</span>
<span class="spec-value">40,000 dots/m²</span>
</li>
<li>
<span class="spec-label">Pixel Configuration:</span>
<span class="spec-value">1R1G1B (SMD2727 / SMD2525)</span>
</li>
<li>
<span class="spec-label">Pixel Resolution:</span>
<span class="spec-value">64 dots (W) × 32 dots (H)</span>
</li>
<li>
<span class="spec-label">Max Power:</span>
<span class="spec-value">50W</span>
</li>
<li>
<span class="spec-label">Module Thickness:</span>
<span class="spec-value">17.05mm</span>
</li>
<li>
<span class="spec-label">Weight:</span>
<span class="spec-value">0.5kg</span>
</li>
<li>
<span class="spec-label">Drive Type:</span>
<span class="spec-value">Constant drive</span>
</li>
<li>
<span class="spec-label">Scan Mode:</span>
<span class="spec-value">1/8 scan</span>
</li>
<li>
<span class="spec-label">Port Type:</span>
<span class="spec-value">HUB75</span>
</li>
<li>
<span class="spec-label">Brightness:</span>
<span class="spec-value">≥6,500 cd/m²</span>
</li>
</ul>
</section>

<section class="wiring-section">
<h2>LED Cabinet Specifications:</h2>
<ul class="specs-list">
<li>
<span class="spec-label">Cabinet Dimension:</span>
<span class="spec-value">640mm × 640mm</span>
</li>
<li>
<span class="spec-label">Modules per Cabinet:</span>
<span class="spec-value">8 pieces</span>
</li>
<li>
<span class="spec-label">Power Supply:</span>
<span class="spec-value">5V/60A × 2 pieces</span>
</li>
<li>
<span class="spec-label">Cooling:</span>
<span class="spec-value">1 fan</span>
</li>
<li>
<span class="spec-label">Pixels per Cabinet:</span>
<span class="spec-value">128mm × 128mm</span>
</li>
<li>
<span class="spec-label">Viewing Distance:</span>
<span class="spec-value">5m ~ 100m (best)</span>
</li>
<li>
<span class="spec-label">Viewing Angle:</span>
<span class="spec-value">160° (H) / 120° (V)</span>
</li>
<li>
<span class="spec-label">Storage Temperature:</span>
<span class="spec-value">-35°C ~ +85°C</span>
</li>
<li>
<span class="spec-label">Working Temperature:</span>
<span class="spec-value">-20°C ~ +50°C</span>
</li>
<li>
<span class="spec-label">Relative Humidity:</span>
<span class="spec-value">10% ~ 95%</span>
</li>
<li>
<span class="spec-label">Thickness:</span>
<span class="spec-value">85mm</span>
</li>
</ul>

<h2>Power Specifications:</h2>
<ul class="specs-list">
<li>
<span class="spec-label">Working Voltage:</span>
<span class="spec-value">AC 220V ±10%</span>
</li>
<li>
<span class="spec-label">Average Power:</span>
<span class="spec-value">&lt;390W/m²</span>
</li>
<li>
<span class="spec-label">Max Power:</span>
<span class="spec-value">&lt;980W/m²</span>
</li>
<li>
<span class="spec-label">Current:</span>
<span class="spec-value">&lt;20mA (single LED)</span>
</li>
</ul>

<h2>Control System:</h2>
<ul class="specs-list">
<li>
<span class="spec-label">CPU Requirement:</span>
<span class="spec-value">Pentium 4 or above</span>
</li>
<li>
<span class="spec-label">Operating System:</span>
<span class="spec-value">Windows XP / Windows 7</span>
</li>
<li>
<span class="spec-label">Control Method:</span>
<span class="spec-value">Synchronization</span>
</li>
<li>
<span class="spec-label">Display Mode:</span>
<span class="spec-value">≥800×600 / 1024×768</span>
</li>
</ul>

<h2>Technical Parameters:</h2>
<ul class="specs-list">
<li>
<span class="spec-label">Driving Device:</span>
<span class="spec-value">Constant drive IC</span>
</li>
<li>
<span class="spec-label">Refresh Frequency:</span>
<span class="spec-value">&gt;1,920Hz</span>
</li>
<li>
<span class="spec-label">Grey Scale/Colors:</span>
<span class="spec-value">16,384 grey levels / 16.7M colors</span>
</li>
<li>
<span class="spec-label">MTBF:</span>
<span class="spec-value">&gt;9,000 hours</span>
</li>
<li>
<span class="spec-label">Power Switch:</span>
<span class="spec-value">Automatic switch</span>
</li>
</ul>
</section>
